Hose connection vacuum breaker PN12
Features & Benefits
- Brass body
- No special tools required for servicing
Pressure/Temperature Rating
- 12 Bar from -10°C to 82°C
Specifications
- Brass body
- Stainless steel spring and screw
- ¾" BSPP threaded
- Durable EPDM diaphragm and O-rings for consistent positive seating
- Available with brass or chrome finish

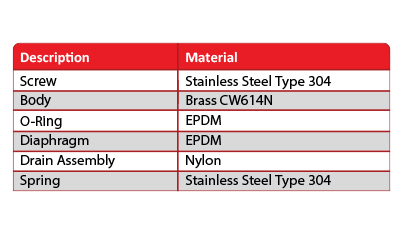

Material Specification

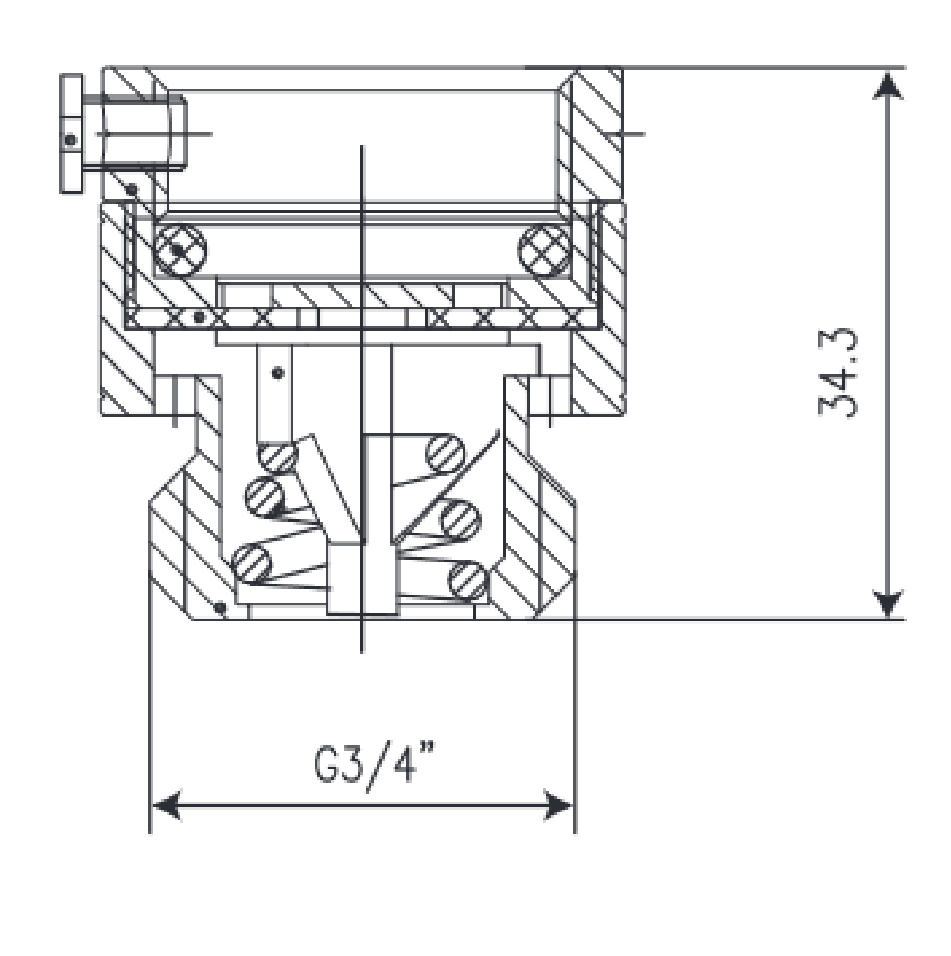

Dimensional Drawings
